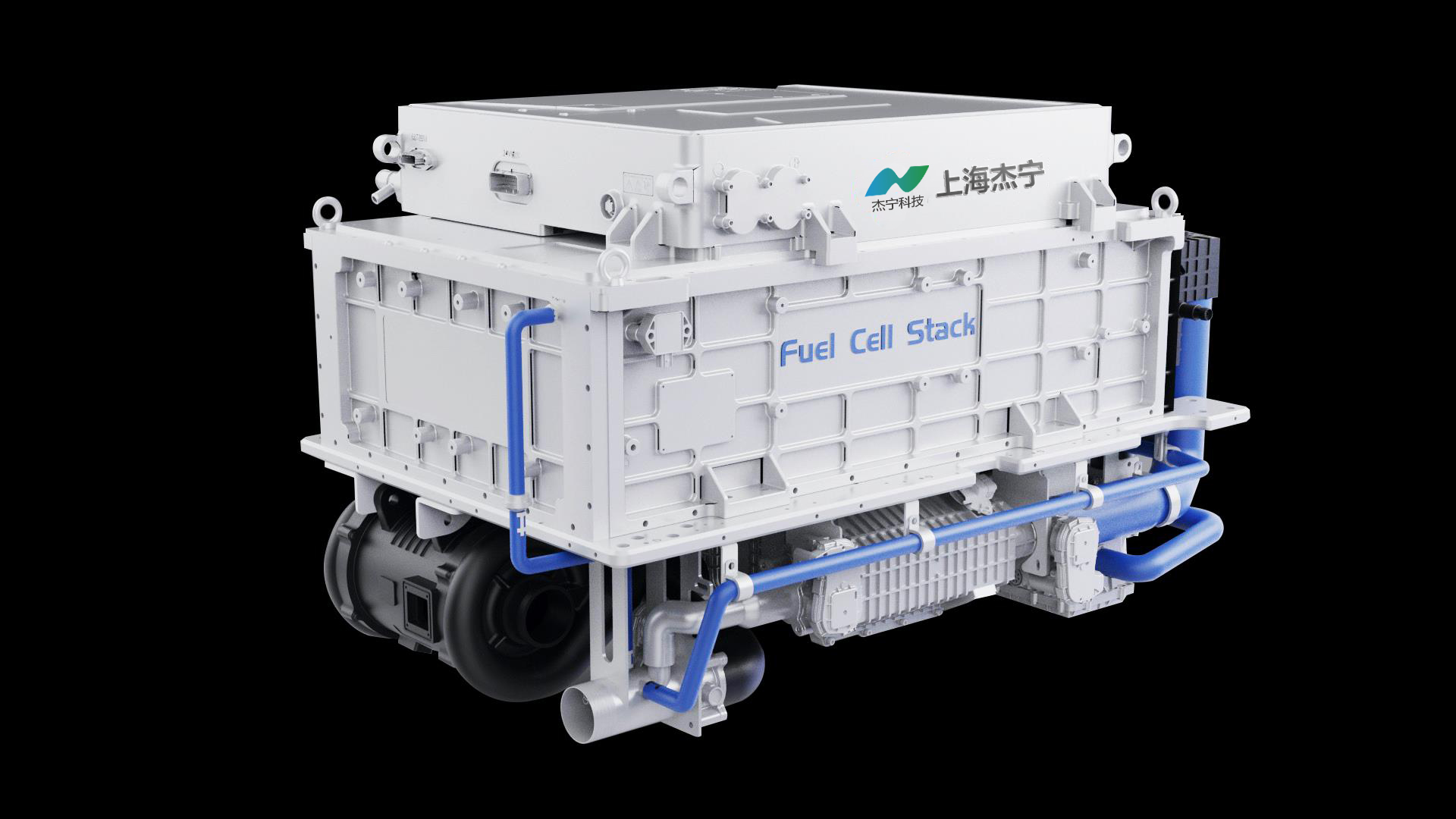

J200 FC System
In 2023, Jiening successfully developed a 200KW fuel cell system, which was the largest fuel cell system at the time.
J200 adopts advanced all-in-one control technology with high efficiency and stable energy conversion capability, featuring fast startup and long service life. Tailor-made for heavy-duty and high-speed hydrogen heavy trucks, it can also meet the needs of ships, construction machinery, material handling, low-altitude drones, power generation and other fields, helping to realize carbon neutrality and sustainable development.
Product Features
Superior cold start performance
Industry-leading durability
High safety ratings
Functional Safety: ASIL C (Optional ISO26262:2018)
Dust and Water Resistance: IP68
EMC: Level 3
Technical Parameters
Rated power (kW): 200
Mass power density (W/kg): 765
Cold start temperature (°C): -30
Maximum continuous operating water temperature (°C): 95
Design life (h): 30,000
