J150

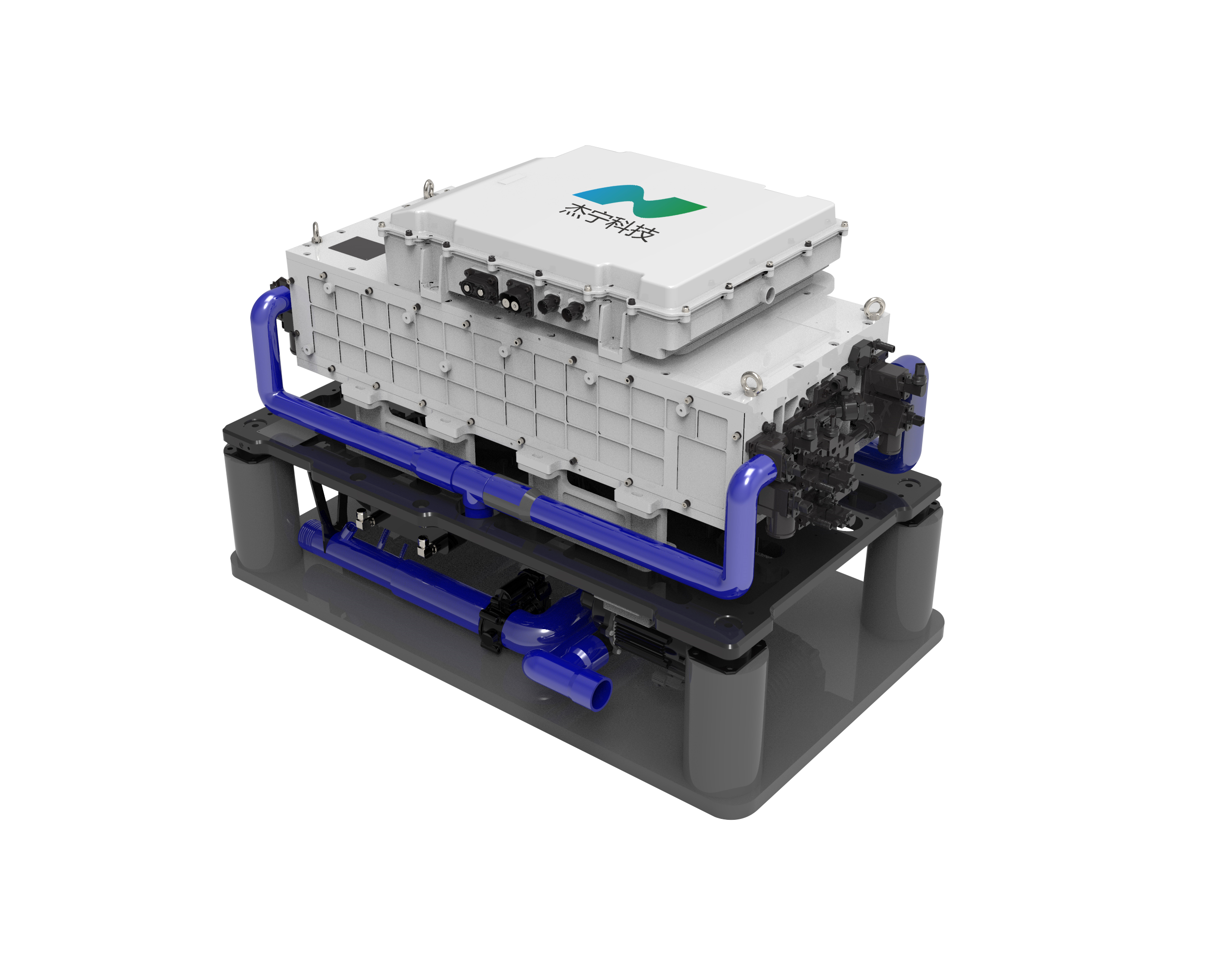

J150 FC System



In 2022, Jiening successfully developed a 150KW fuel cell system, which was the largest fuel cell system at the time.

J200 adopts advanced all-in-one control technology with high efficiency and stable energy conversion capability, featuring fast startup and long service life. Tailored for heavy-duty medium and high-speed hydrogen heavy trucks, it can also meet the needs of ships, construction machinery, material handling, low-altitude drones, power generation and other fields, helping to realize carbon neutrality and sustainable development.




Product Features

Superior cold start performance
Industry-leading durability
High safety ratings
Functional Safety: ASIL C (Optional ISO26262:2018)
Dust and Water Resistance: IP68
EMC: Level 3


Technical Parameters

Rated Power (kW):    150
Mass power density (W/kg): 765
Cold Start Temperature(°C): -30
Maximum Continuous Operating Water Temperature (°C):    83
Design life (h):  30,000
