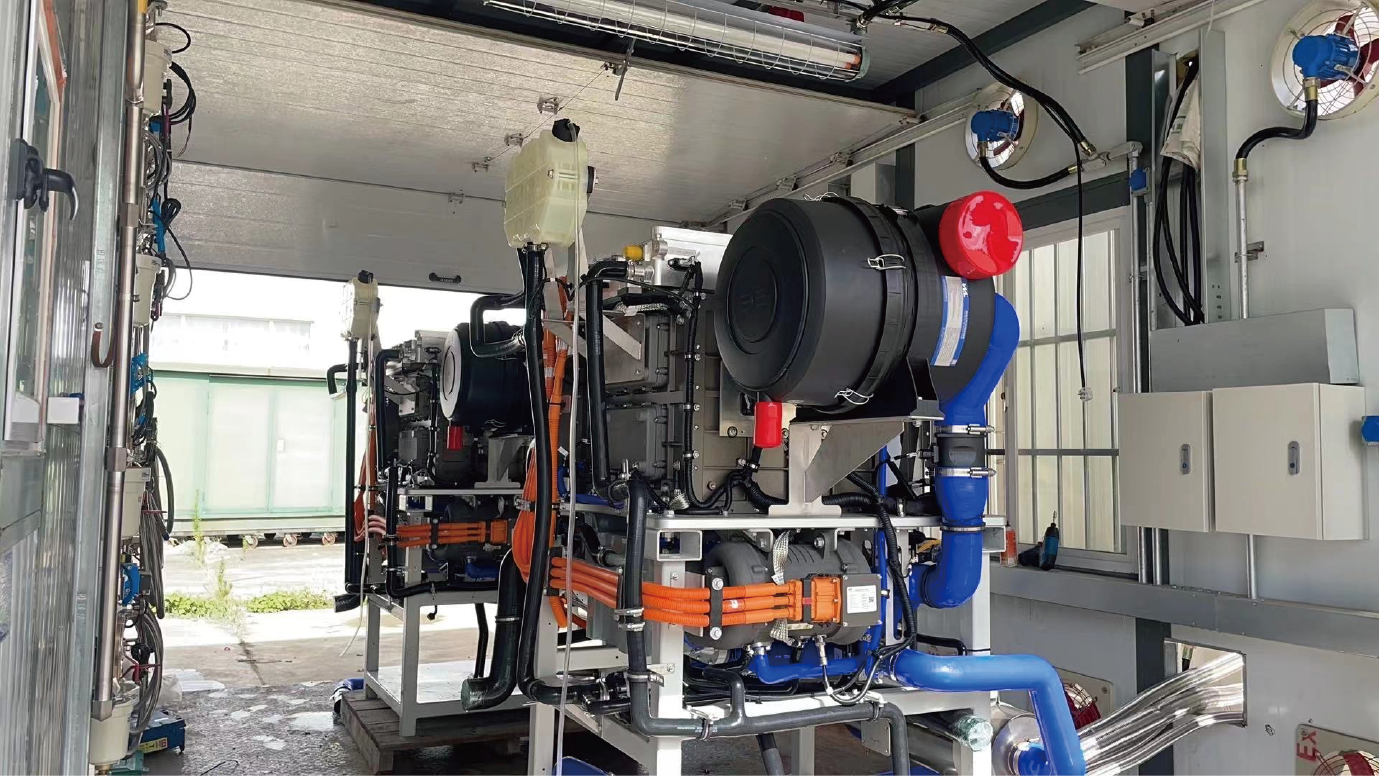

Js500 FC System
In 2020, Jiening took the lead in declaring the Shanghai Industrial Transformation and Upgrading Development Special Fund (Industrial Strengthening) Program to develop high-power hydrogen fuel cells for marine engines. The project was tested in Shanghai Maritime University and passed the acceptance of Shanghai Municipal Commission of Economy and Information Technology in 2024, which is the largest power marine fuel cell system in the market.
Js500 adopts advanced all-in-one control technology with high efficiency and stable energy conversion capability, featuring fast startup and long service life. It is tailor-made for hydrogen energy cargo ships of about 1,000 tons, and can also be used in energy storage and power generation, helping to achieve carbon neutrality and sustainable development.
Product Features
Superior cold start performance
Industry-leading durability
High safety ratings
Functional Safety: ASIL C (Optional ISO26262:2018)
Dust and Water Resistance: IP68
EMC: Level 3
Technical Parameters
Rated power (kW): 500
Mass power density (W/kg): 520
Cold start temperature (°C): -30
Maximum continuous operating water temperature (°C): 83
Design life (h): 30,000
